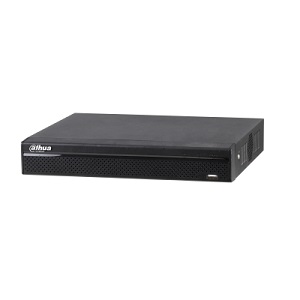

VS-XDVR5104H-4M : 4 CHANNEL PENTA-BRID 4MP MINI 1U DIGITAL VIDEO RECORDER

Model: VS-XDVR5104H-4M

Categories: , , , ,
Description

Description

SpecificationsDownload
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4 Channel, BNC
HDCVI Camera 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4 2 Channel, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/Out, RCA
Recording
Compression H.264 /h.265
Resolution 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate Main Stream:
4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Sub Stream:
960H(1~12fps); D1/CIF/QCIF (1~25/30fps)
Bit Rate 1kbps~6144kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD( Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1~60min (default: 60min), Pre-record: 1 ~30 sec, Post record: 10~300sec
Display
Interface 1 HDMI, 1 VGA
Resolution 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones:396 (22.18), Video Loss, Tampering and Diagnosis
Alarm Input N/A
Relay Output N/A
Playback and Backup
Playback 1/4
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection,
Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (2 USB 2.0)
RS232 N/A
RS485 1 Port, for PTZ Control
Electrical
Power Supply DC12V/2A
Power Consumption <10W (Without HDD)
Construction
Dimensions Mini 1U, 325mmx255mmx55mm (12.8″x10″x2.2″)
Net Weight 1.5KG (3.3Ib)(without HDD)
Gross Weight 2kg (4.4Ib)
Installation Desktop installation
Environmental
Operating Conditions -10°C ~ 55°C ( 14°F ~ 131°F), 0~ 90% RH
Storage Conditions -20°C ~ 70°C (-4°F ~ 158°F) , 0~ 90% RH
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
